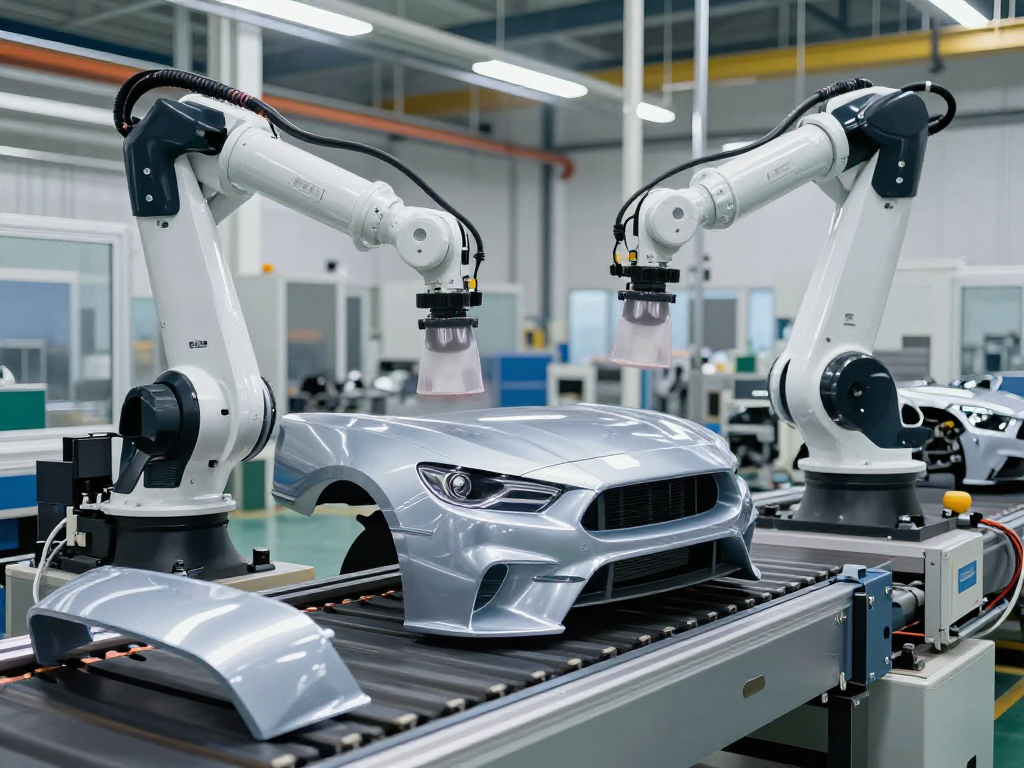

Robotic Painting System for Auto Parts
An auto parts supplier implemented a robotic painting system to improve repeatability and reduce rework rate for high-appearance components.
Background
An automotive parts supplier producing bumpers, mirrors, and trim panels for OEM customers faced increasing quality pressure. Their manual painting process could not meet the tight appearance and film thickness specifications required by automotive OEMs. Every shift produced variable results, and rework rates were high — especially on visible exterior parts. The company needed a solution that could deliver consistent, repeatable coating quality across thousands of parts per day.
Customer Pain Points
High appearance requirements from OEM customers — any visible defect triggers rejection
Repeated manual rework consuming 15–20% of production time
Inconsistent spray angles and distances due to manual operation
Color change difficulties in mixed-model production
Difficulty maintaining film thickness within OEM specifications (±3μm)
Operator skill variation causing shift-to-shift quality differences
Proposed Solution
We implemented a comprehensive robotic painting system designed specifically for automotive-grade coating requirements. The solution included robot path programming optimized for each part geometry, spray booth integration with controlled environment, and fixture optimization to ensure consistent part positioning. Multi-layer application (primer, basecoat, clearcoat) was fully automated.
System Configuration
2x 6-axis painting robots for multi-layer application
Automatic color change system with flush cycle optimization
Custom spray booth with controlled temperature and humidity
Part-specific robot path programs with optimized spray angles
Fixture optimization for consistent part positioning and grounding
Online film thickness and appearance inspection system
Automatic bell atomizer with precise paint flow control
Recipe management system linked to factory MES
Project Results
Repeatability dramatically improved — coating consistency within ±2μm
Rework rate reduced from 15–20% to under 3%
OEM appearance quality standards consistently met
Color change time reduced significantly for mixed-model production
Shift-to-shift quality variation essentially eliminated
Customer audit scores improved substantially
Suitable Applications
Auto bumpers, fenders, and trim panels
Mirrors, door handles, and wheel covers
Interior and exterior automotive components
Any application requiring OEM-grade appearance quality
